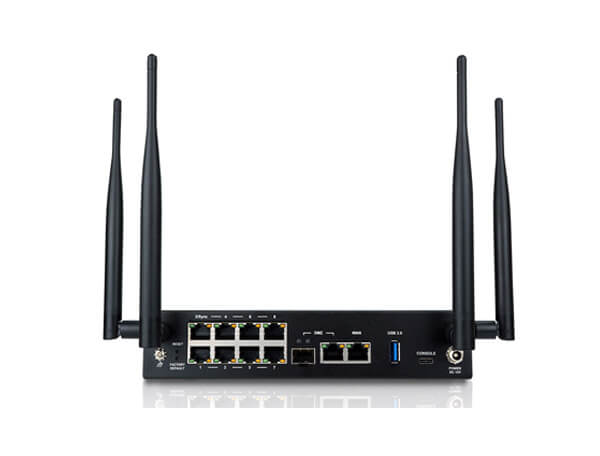

Check Point 1590 Security Gateway

  • Wired WiFi and WiFi+LTE
  • 8x1GbE LAN, 1x1GbE WAN ports, 1x1GbE / SFP DMZ ports.
  • Dual band concurrent 802.11ac wave II 4×4 WiFi (see below for 1590 Enhanced WiFi capabilities).
  • New look and feel, lightweight, fanless, Aluminum-based design.
  • Front panel LEDs indication (4/5 LEDs).
  • USB Type-C console port.
  • USB 3.0 Port.
  • SD Card support.
  • Dual SIM (Nano and Micro).
  • NGTX performance – 660 Mbps (CPEnt).

Thông số kỹ thuật

Thông số 1570 1590
Threat Prevention (Mbps) 500 660
Next Generation Firewall (Mbps) 970 1,300
IPS Throughput (Mbps) 1,050 1,400
Firewall Throughput (Mbps) 2,800 2,800
Firewall 1518 Byte UDP Packets (Mbps) 6,400 6,400
VPN AES-128 Throughput (Mbps) 1,950 2,600
Connections per Second 15,750 21,000
Concurrent Connections 500,000 500,000
Software & Security Features
Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam, SandBlast Threat Emulation (sandboxing), Unicast, Multicast Routing (OSPFv2, BGP, RIP, PIM, IGMP)
Mobile Access License (Users) 200 remote SNX or Mobile VPN client users
Hardware
WAN Port 1x 10/100/1000Base-T RJ-45 port
DMZ Port 1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included)
LAN Ports 8x 10/100/1000Base-T RJ-45 ports
Wi-Fi (optional) 802.11 b/g/n & 802.11 n/ac wave II MIMO 4×4
Radio Band 2.4GHz (max 450 Mbps); 5GHz (max 1,700 Mbps)
3/4G/LTE (optional) Embedded modem, CAT6 with Main & Auxiliary antennas
SIM (optional) Dual SIM (Nano & Micro)
Console Port 1x USB-C
USB Port 1x USB 3.0
SD Card Slot Micro-SD slot
Physical & Environment
Enclosure Desktop
Dimensions (W x D x H) 210 x 170 x 42 mm; 8.3 x 6.7 x 1.7 in
Weight 0.87 kg (1.9 lbs.)
Operating / Storage 0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)
AC Input 110 – 240VAC, 50 – 60 Hz
Power Supply Rating 12V/3.3A 40W (non-Wi-Fi), 12V/5A 60W (Wi-Fi and Wi-Fi-LTE)
Power Consumption (Max) 26.01W (non-Wi-Fi) 31.28W (Wi-Fi); 35.5W (Wi-Fi-LTE)
Heat Dissipation (BTU/hr) 88.70 (non-Wi-Fi) 100.66 (Wi-Fi), 106.73 (Wi-Fi-LTE), 121.06 (Wi-Fi-LTE)
Certifications UL/c-UL, CB IEC, CE LVD 62368-1, VCCI, AS/NZS, FCC, IC Class B, FCC, IC, AS/NZS, CE RED ETSI, RoHS, REACH
