Thông số kỹ thuật
| Thông số kỹ thuật sản phẩm | |
|---|---|
| Enterprise Test Conditions | |
| Threat Prevention (Mbps) | 780 |
| NGFW (Gbps) | 1.5 |
| IPS (Gbps) | 1.9 |
| Firewall (Gbps) | 3.3 |
| Firewall 1518B UDP (Gbps) | 4 |
| VPN AES-128 (Gbps) | 2.71 |
| Connections/sec | 32,000 |
| Concurrent connections | 2M |
| Hardware | |

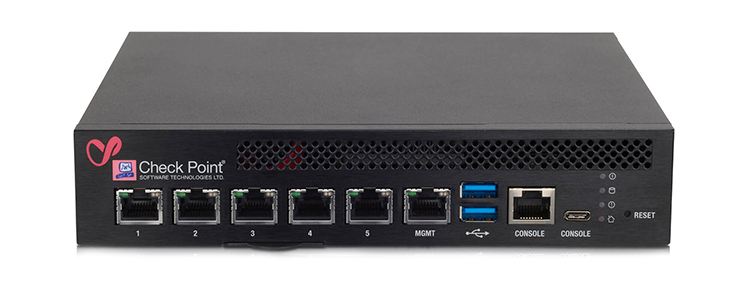

| Interface | 5x 10/100/1000 Base-T ports |
| Management | 10/100/1000 Base-T port |
| Console port | 1x RJ45, 1x USB Type-C |
| USB | 2x USB 3.0 ports |
| Storage | 1x 240 GB SSD |
| CPU | 1x CPU, 4 physical cores |
| RAM | 8G |
| Virtual Systems (maximum) | 5 |
| Software | |
| Network Connectivity | Tổng physical và virtual (VLAN) interfaces: 1024/4096 (single gateway/với virtual systems) 802.3ad passive và active link aggregation Layer 2 (transparent) và Layer 3 (routing) mode |
| High Availability | Active/Active L2, Active/Passive L2 and L3 Session failover cho thiết bị, mạng và đường dẫn ClusterXL và VRRP |
| IPv6 | NAT66, NAT64, NAT46 CoreXL, SecureXL, HA với VRRP-v3 |
| Unicast and Multicast Routing | OSPFv2 & v3, BGP, RIP Static routes, multicast routes Policy-based routing PIM-SM, PIM-SSM, PIM-DM, IGMP v2, v3 |
| Power Requirements | |
| Single Power Supply rating | 40W |
| AC power input | 100 to 240V (47~63Hz) |
| Power consumption avg/max | 21W / 25W |
| Maximum thermal output | 85 BTU/hr |
| Dimensions | |
| Enclosure | Desktop |
| Dimensions (WxDxH) | 8.3 x 8.3 x 1.65 in (210 x 210 x 42mm) |
| Weight | 3.1 lbs (1.4 kg) |
| Environmental Conditions | |
| Operating | 0° to 40°C, humidity 5 to 95% |
| Storage | –20° to 70°C, humidity 5 to 95% |
