Thông số kỹ thuật

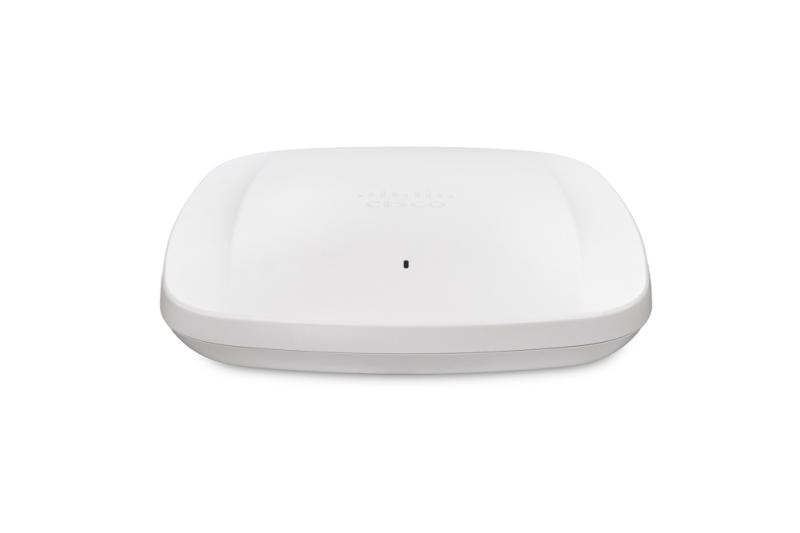

| THÔNG SỐ KỸ THUẬT – Cisco Catalyst 9130AX Access Point (C9130AXI-S) | |
|---|---|
| Thông Tin Cơ Bản | |
| Part Number | C9130AXI-S |
| Software & Wireless Controllers | |
| Cisco Unified Wireless Network Software | Release 8.10.x or later |
| Cisco IOS XE Software | Release 16.12.1 with AP Device Pack, or later |
| Supported Wireless Controllers | Cisco Catalyst 9800 Series, Cisco 3504, 5520, and 8540 Series, Cisco Virtual Wireless Controller |
| 802.11n (2.4 GHz) Capabilities | |
| MIMO Configuration | 4×4 MIMO with four spatial streams |
| Technology | Maximal Ratio Combining (MRC), 802.11n and 802.11a/g Beamforming, 20/40-MHz channels |
| Maximum PHY Data Rate | 1.72 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) |
| Packet Aggregation | A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
| Additional Features | 802.11 DFS, Cyclic Shift Diversity (CSD) support |
| 802.11ac (5 GHz) Capabilities | |
| MIMO Configuration | 8×8 downlink MU-MIMO with eight spatial streams |
| Technology | MRC, Beamforming, 20/40/80/160-MHz channels |
| Maximum PHY Data Rate | 4.8 Gbps (160 MHz with 5 GHz) |
| Packet Aggregation | A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
| Additional Features | 802.11 DFS, CSD support |
| 802.11ax (Wi-Fi 6) Capabilities | |
| MIMO Configuration | 8×8 uplink/downlink MU-MIMO with eight spatial streams |
| Technology | Uplink/downlink OFDMA, TWT, BSS Coloring, MRC, Beamforming |
| Channel Support | 20, 40, 80, and 160-MHz channels |
| Maximum PHY Data Rate | 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) |
| Packet Aggregation | A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
| Additional Features | 802.11 DFS, CSD support |
| Integrated Antenna Configuration | |
| 2.4 GHz Antenna | Peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
| 5 GHz Antenna | Peak gain 6 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces & Connectivity | |
| Ethernet Port | 1× Multigigabit Ethernet (100/1000/2500/5000 Mbps) – IEEE 802.3az (RJ-45) |
| Management Console Port | RJ-45 |
| USB | USB 2.0 @ 4.5W (enabled via future software) |
| Status LED | Boot loader status, association status, operating status, warnings, and errors |
| Physical Specifications | |
| Dimensions (W × L × H) | 8.9 × 8.9 × 1.88 in. (22.6 × 22.6 × 4.8 cm) |
| Weight | 3.2 lbs (1.45 kg) |
| Power Requirements | |
| Power Options | 802.3at PoE+, Cisco Universal PoE (Cisco UPOE), Cisco power injector (AIR-PWRINJ6=) |
| 802.3af PoE | Supported with Cisco power injector (AIR-PWRINJ5=) Note: This injector supports only 802.3af |
| Environmental Specifications | |
| Operating Temperature | -4° to 122°F (-20° to 50°C) |
| Storage Temperature | -22° to 158°F (-30° to 70°C) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Operating Altitude | 40°C, 9,843 ft. (3,000 m) |
| Storage Altitude | 25°C, 15,000 ft. (4,600 m) |
| System Memory | |
| DRAM | 2048 MB |
| Flash Memory | 1024 MB |
