| Series |

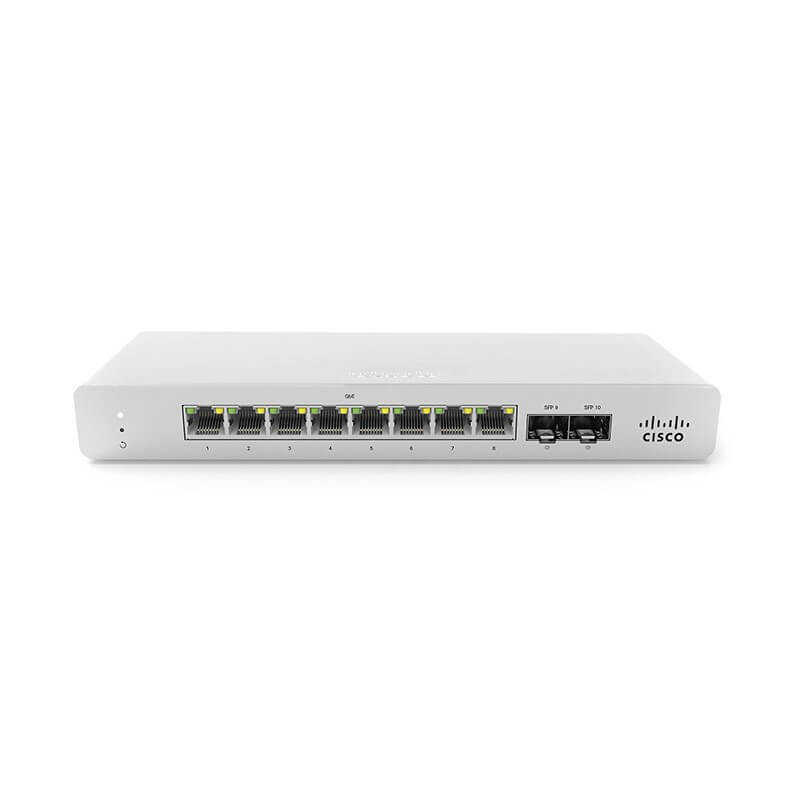

MS120 |
| Deployment type |
Compact |
| Interface |
- 8 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
- 2 x 1G SFP uplink
|
| Switching Capacity |
20 Gbps |
| Forwarding rate |
14.88mpps with standard packet size |
| Jumbo frame support |
9578 byte ethernet frame |
| Power configuration |
External Power Supply |
| Power Supply/Model Number |
DC 12V/2.5A, 30W, MA-PWR-30WAC |
| Idle / Full Load Power |
6 / 9 W |
| Routing capabilities |
DHCP Relay |
| Physical Dimensions (H x W x D) |
1.1 x 8.74 x 5.91″ (2.8 x 22.2 x 15cm) |
| Weight |
2.36 lb (1.07 kg) |
| Environment |
- Operating temperature: 0 °C to 45 °C
- Humidity: 5 to 95% non-condensing
- Fanless operation
|
| MTBF |
784,221 |
| Regulatory |
- CSA-US (US, Canada)
- FCC (USA)
- IC (Canada)
- CE (Europe)
- RCM (Australia/New Zealand)
- RoHS
|
