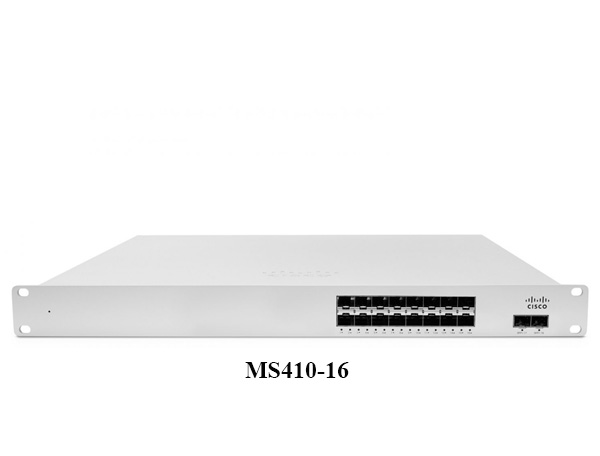

Cisco Meraki MS410-16

Switch ports/stacking ports: 16 × 1G SFP ports; 2 × 10G SFP+ uplinks; Up to 144G of switching capacity; 160 Gbps of physical stacking
Hardware platform: Reliable platform with 24/7 Meraki Support; 1RU rack mountable; 1 RU for space-constrained environments; Voice and video QoS; Non-blocking switch fabric
Cloud management: ; Email alerts for switch management; Remote troubleshooting tools; Manage ports from a GUI-based dashboard; Zero-touch provisioning; Per-port and per-client usage statistics; Secure, user-scheduled firmware updates
Switching capabilities: Layer 3; OSPF Routing; MAC forwarding entries, up to 96K; DHCP Server, DHCP Relay; 802.1X Authentication; DHCP Snooping; STP Enhancements; IPv4 and IPv6 ACLs

Thông số kỹ thuật
Mô tả sản phẩm

Thông số kỹ thuật

Cisco Meraki MS410 Series

Cloud-Managed Aggregation Switching for the Campus

The Cisco Meraki MS410 series extends cloud management across the aggregation layer for medium-size networks with 1/10G fiber aggregation switches. Built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches. To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.

Interfaces

1G Fiber Ports	16 × 1 G SFP
10GbE Uplink Ports	4 × 10GbE SFP+
Stacking Ports	2 × stacking ports
Management Port	1 × RJ45 Management port
Features	Auto-negotiation and crossover detection

Management

Platform	Managed via the Web using the Meraki cloud management platform
Integration	Integrated with Meraki Wireless and complete portfolio of IT products and solutions
Provisioning	Zero-touch remote provisioning (no staging needed)
Statistics & Monitoring	Detailed historical per-port and per-client usage statistics Operating system, device, and hostname fingerprinting
Integration Support	SNMP and SYSLOG support for integration with other network management solutions Automatic firmware upgrades with scheduling control

Remote Diagnostics

Alerts & Notifications	Email, SMS, and Mobile push notification alerts
Diagnostics Tools	Ping, traceroute, cable testing, and link failure detection with alerting
Packet Analysis	Remote packet capture
Network Visibility	Dynamic and interactive network discovery and topology
Logging	Combined event and configuration change logs with instant search

Stacking

Physical Stacking	Physical stacking of up to 8 switches with 160 Gbps stacking bandwidth on all models
Virtual Stacking	Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet Switching Capabilities

Quality of Service	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
VLAN Support	802.1Q VLAN and trunking support for up to 4,094 VLANs
Spanning Tree Protocol	802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
Network Protocols	Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
Link Aggregation	802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
Advanced Features	Port mirroring IGMP snooping for multicast filtering MAC Forwarding: 96K

Security

Authentication & Access Control	Integrated multi-factor authentication for Dashboard management Role-based access control (RBAC) with granular device and configuration control Corporate wide password policy enforcement
Network Authentication	IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing Single-Host/Multi-Domain/Multi-Host/Multi Authentication
Port Security	Port security: Sticky MAC, MAC whitelisting
Network Monitoring & Filtering	DHCP snooping, detection and blocking, Dynamic ARP Inspection IPv4 and IPv6 ACLs

Performance

Fabric Architecture	Non-blocking fabric
Switching Capacity	72 Gbps
Latency	1.2 microsecond latency
Frame Support	Jumbo frame support (9578 ethernet frame)

Layer 3

Routing	Static routing, OSPFv2 Multicast routing
Redundancy	Warm Spare (VRRP)
DHCP Services	DHCP Relay, DHCP Server

Physical Specifications & Environment

Model	MS410-16-HW
Physical Dimensions (H × W × D)	1.74″ × 19.07″ × 21.80″ (4.37 × 48.46 × 51.66 cm)
Weight	12.6 lbs (5.7 kg)
Power Input	100-240 VAC, 47-63 Hz
Power Consumption	50-85 W
Mounting	Rack-mountable with included rack mount hardware Front-to-back airflow
Operating Temperature	0°C to 40°C
Humidity	5 to 95% non-condensing
Regulatory Certifications	CSA (US) IC (Canada) CE (Europe) C-Tick (Australia/New Zealand) RoHS
Warranty	Full lifetime hardware warranty with advanced replacement included
MTBF Rating (at 25°C)	583,457 hours
