| Interfaces |
- 16 × 10G SFP+
- 2 × 40G QSFP+
- 1 × RJ45 management port
- Auto-negotiation and crossover detection
|
| Management |
- Managed via the Web with the Meraki cloud management platform
- Integrated with Meraki Wireless and complete portfolio of IT solutions
- Zero-touch remote provisioning (no staging needed)
- Detailed historical per-port and per-client usage statistics
- Operating system, device, and hostname fingerprinting
- SNMP and SYSLOG support for integration
- Automatic firmware upgrades with scheduling control
|
| Remote Diagnostics |
- Email, SMS, and mobile push notification alerts
- Ping, traceroute, cable testing, and link failure detection with alerting
- Remote packet capture
- Dynamic and interactive network discovery and topology
- Combined event and configuration change logs with instant search
|
| Stacking |
- Physical stacking up to 8 switches, 160 Gbps stacking bandwidth
- Virtual Stacking supports thousands of ports in a single logical stack
- Flexible stacking on all interfaces/SFP+/QSFP+ accessory types, up to 8 switches
|
| Ethernet Switching Capabilities |
- 802.1p QoS, 8 queues (6 for DSCP-to-CoS)
- 802.1Q VLAN/trunking up to 4,094 VLANs
- 802.1w, 802.1D RSTP, STP
- STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
- Broadcast storm control
- LLDP, CDP
- 802.3ad Link aggregation, multichassis aggregates on stacked switches
- Port mirroring
- IGMP snooping for multicast filtering
- MAC forwarding: 228K
|
| Security |
- Integrated multi-factor authentication for dashboard
- Role-based access control (RBAC)
- Password policy enforcement
- IEEE 802.1X RADIUS, MAB, hybrid authentication, RADIUS server testing
- Single-Host/Multi-Domain/Multi-Host/Multi Authentication
- Port security: Sticky MAC, MAC whitelisting
- DHCP snooping/detection/blocking, Dynamic ARP Inspection
- IPv4 and IPv6 ACLs
|
| Performance |
- Non-blocking fabric
- Switching capacity: 480 Gbps
- 1.2 microsecond latency
- Jumbo frame support (9578 ethernet frame)
|
| Layer 3 |
- Static routing, OSPFv2
- Multicast routing
- Warm spare (VRRP)
- DHCP Relay, DHCP Server
|
| Power |
- Power input: 100-240 VAC, 47-63Hz
- Power consumption: 50-85 W
|
| Mounting |
- Rack-mountable with included rack mount hardware
- Front-to-back airflow
|
| Environment |
- Operating temperature: 0°C to 40°C
- Humidity: 5 to 95% non-condensing
|
| Regulatory |
- CSA (US)
- IC (Canada)
- CE (Europe)
- C-Tick (Australia/New Zealand)
- RoHS
|
| Warranty |
- Full lifetime hardware warranty with advanced replacement included
|
| MTBF Rating (at 25°C) |
|
| Physical Specifications (H × W × D) |

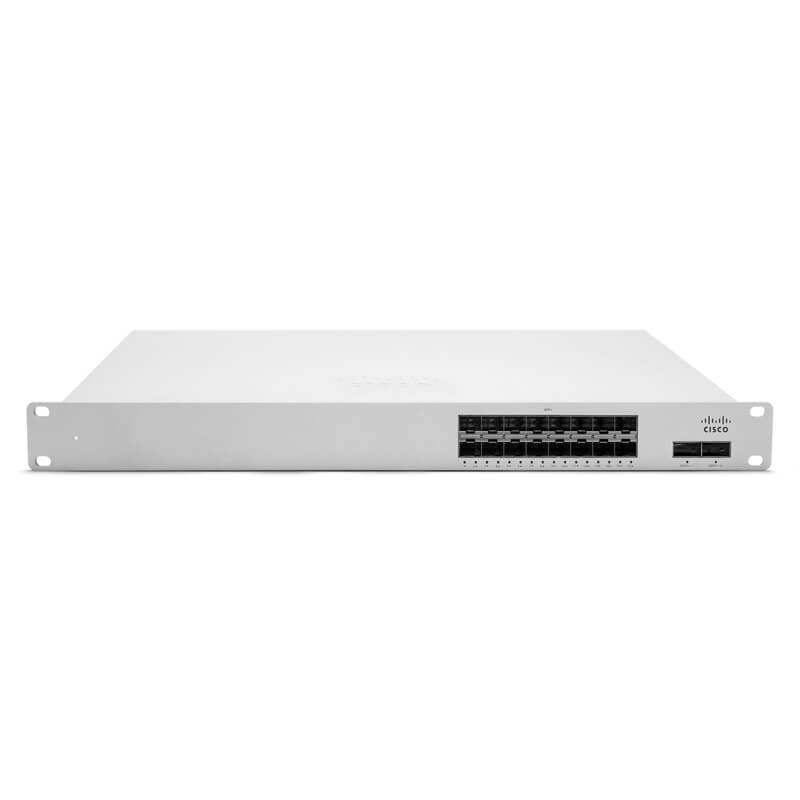

- MS425-16-HW: 1.72” × 19.07” × 20.67” (4.37 × 48.44 × 48.69cm)
- 13.7 lbs (6.2 kg)
|
