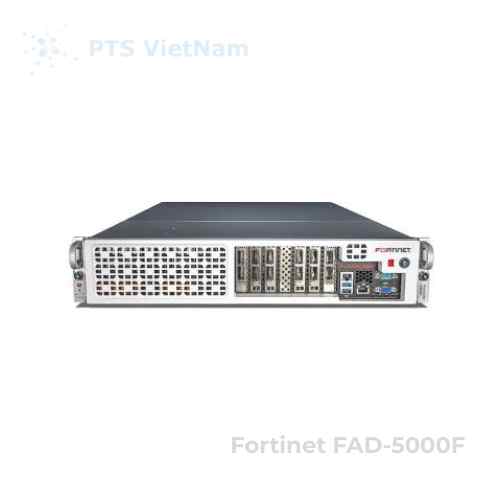

FORTIADC 5000F – SPECIFICATIONS
| System Performance | |
| L4/L7 Throughput | 250 Gbps / 220 Gbps |
|---|---|
| L4 CPS | 4M |
| L4 HTTP RPS | 18,000,000 |
| Maximum L4 Concurrent Connection | 216,000,000 |
| L7 CPS (1:1) | 1,100,000 |
| SSL CPS/TPS (1:1) 2K keys | 90,000 |
| SSL Bulk Encryption Throughput | 100 Gbps |
| Compression Throughput | 150 Gbps |
| SSL Acceleration Technology | ASIC |
| Virtual Domains | 90 |
| Hardware Specifications | |
| Memory | 384 GB |
| Network Interfaces | 4x 100 GE QSFP28, 8x 40 GE QSFP |
| 10/100/1000 Management Interface | 1 |
| Storage | 3.74 TB SSD |
| Management | HTTPS, SSH CLI, Direct Console DB9 CLI, SNMP |
| Power Supply | Dual (support hot-swap PSU) |
| Trusted Platform Module (TPM) | No |
| Dimensions | |
| Height x Width x Length (inches) | 3.4 x 17.2 x 30.2 |
| Height x Width x Length (mm) | 80.6 x 436.9 x 777.2 |
| Weight | 68.3 lbs (31 kg) |
| Environment | |
| Form Factor | 2U Appliance |
| Input Voltage | 220–240V AC, 50–60 Hz |
| Power Consumption (Average / Maximum) | 1120 W / 2200 W |
| Maximum Current | 120V / 6A, 240V / 3A |
| DC Power Supply | — |
| Heat Dissipation | 7506 BTU/hr |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
| Humidity | 8% to 90% non-condensing |
| Forced Airflow | Front to Back |
