| Mã sản phẩm |

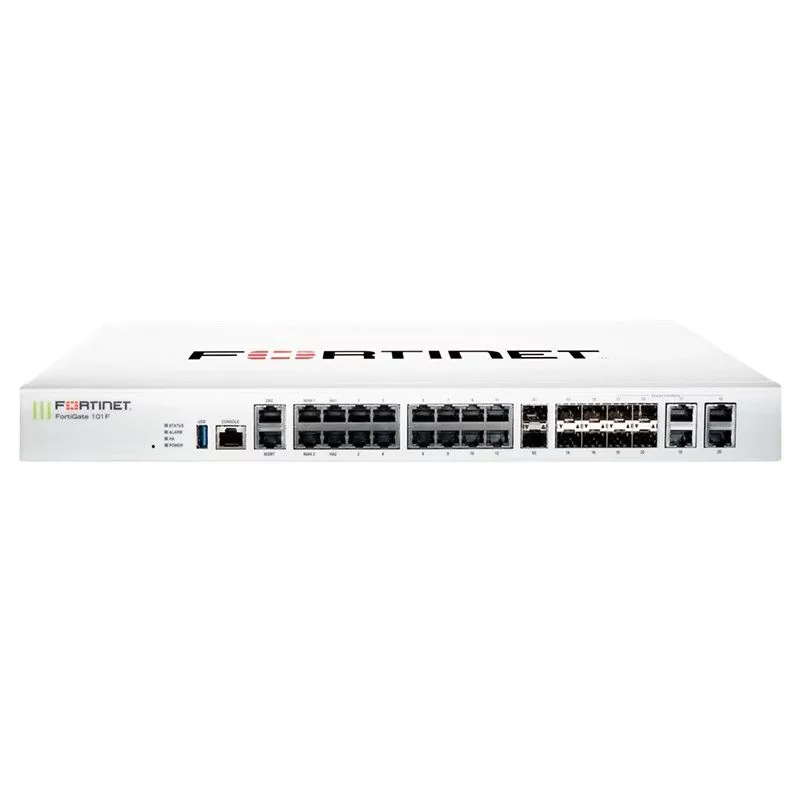

FG-100F-BDL-950-12 |
| Hardware Specifications |
Values |
| GE RJ45 Ports |
12 |
| GE RJ45 Management/HA/DMZ Ports |
1 / 2 / 1 |
| GE SFP Slots |
4 |
| 10 GE SFP+ Slots |
2 |
| GE RJ45 WAN Ports |
2 |
| GE RJ45 or SFP Shared Ports |
4 |
| USB Port |
1 |
| Console Port |
1 |
| Internal Storage |
– |
| Included Transceivers |
0 |
| System Performance — Enterprise Traffic Mix |
Value |
| IPS Throughput |
2.6 Gbps |
| NGFW Throughput |
1.6 Gbps |
| Threat Protection Throughput |
1 Gbps |
| System Performance |
Value |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
20 / 18 / 10 Gbps |
| Firewall Latency (64 byte UDP packets) |
5 μs |
| Firewall Throughput (Packets Per Second) |
15 Mpps |
| Concurrent Sessions (TCP) |
1.5 Million |
| New Sessions/Second (TCP) |
56 |
| Firewall Policies |
10,000 |
| IPsec VPN Throughput (512 byte) |
11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2,500 |
| Client-to-Gateway IPsec VPN Tunnels |
16,000 |
| SSL-VPN Throughput |
750 Mbps |
| Concurrent SSL-VPN Users (Tunnel Mode) |
500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
1,800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
135,000 |
| Application Control Throughput (HTTP 64K) |
2.2 Gbps |
| CAPWAP Throughput (1444 byte, UDP) |
15 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of Switches Supported |
24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
128 / 64 |
| Maximum Number of FortiTokens |
5,000 |
| Maximum Number of Registered FortiClients |
600 |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| Dimensions |
Value |
| Height x Width x Length (inches) |
1.73 x 17 x 10 |
| Height x Width x Length (mm) |
44 x 432 x 254 |
| Form Factor |
Rack Mount, 1 RU |
| Weight |
7.25 lbs (3.29 kg) |
| Operating Environment |
Value |
| Power Required |
100–240V AC, 50–60 Hz |
| Maximum Current |
100V / 1A, 240V / 0.5A |
| Power Consumption (Average / Maximum) |
35.1 W / 38.7 W |
| Heat Dissipation |
119.77 BTU/h |
| Operating Temperature |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Humidity |
10–90% non-condensing |
| Noise Level |
40.4 dBA |
| Certifications |
Value |
| Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Security Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
