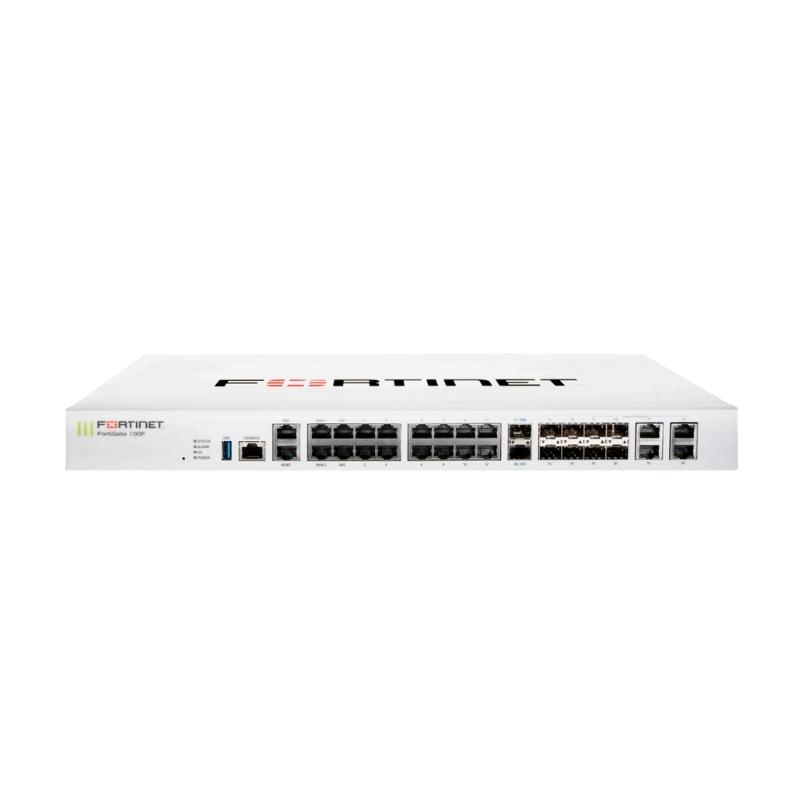

| Datasheet FortiGate FG-201F-BDL-950-12 |
| Interfaces and Modules |
| GE RJ45 Ports |
16 |
| GE RJ45 Management/HA |
1 / 1 |
| GE SFP Slots |
8 |
| 10GE SFP+ FortiLink Slots (default) |
2 |
| 10GE SFP+ Slots |
2 |
| USB Port |
1 |
| Console Port |
1 |
| Onboard Storage |
1 x 480 GB SSD |
| Included Transceivers |
0 |
| System Performance — Enterprise Traffic Mix |
| IPS Throughput |
5 Gbps |
| NGFW Throughput |
3.5 Gbps |
| Threat Protection Throughput |
3 Gbps |
| System Performance and Capacity |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
27 / 27 / 11 Gbps |
| Firewall Latency (64 byte, UDP) |
4.78 μs |
| Firewall Throughput (Packet per Second) |
16.5 Mpps |
| Concurrent Sessions (TCP) |
3 Million |
| New Sessions/Second (TCP) |
280,000 |
| Firewall Policies |
10,000 |
| IPsec VPN Throughput (512 byte) |
13 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2,000 |
| Client-to-Gateway IPsec VPN Tunnels |
16,000 |
| SSL-VPN Throughput |
2 Gbps |
| Concurrent SSL-VPN Users (Recommended Max, Tunnel Mode) |
500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
4 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
3,500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
300,000 |
| Application Control Throughput (HTTP 64K) |
13 Gbps |
| CAPWAP Throughput (HTTP 64K) |
20 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
64 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
256 / 128 |
| Maximum Number of FortiTokens |
5,000 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions and Power |
| Height x Width x Length (inches) |
1.73 x 17.01 x 13.47 |
| Height x Width x Length (mm) |
44 x 432 x 342 |
| Weight |
10.14 lbs (4.6 kg) |
| Form Factor |
Ear Mount, 1 RU |
| AC Power Supply |
100–240V AC, 50-60 Hz |
| Power Consumption (Average / Maximum) |
104.52 W / 121.94 W |
| Current (Maximum) |
100V / 2A, 240V / 1.2A |
| Heat Dissipation |
436.98 BTU/h |
| Redundant Power Supplies |
Yes (Default dual non-swappable AC PSU for 1+1 Redundancy) |
| Operating Environment and Certifications |
| Operating Temperature |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Humidity |
20–90% non-condensing |
| Noise Level |
49.9 dBA (Forced airflow, Side to Back) |
| Operating Altitude |
Up to 10,000 ft (3,048 m) |
| Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications |
USGv6/IPv6 |
