Thông số kỹ thuật
J9782A Specifications

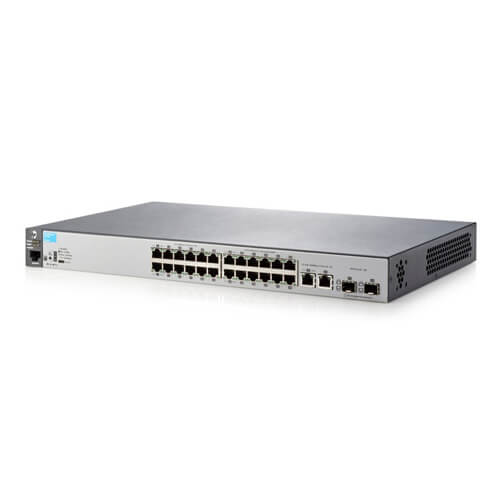

| Type | Aruba 2530-24 Switch |
| System specifications | |
| Ports | · 24 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full · 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 2 fixed Gigabit Ethernet SFP ports. · 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
| Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
| Management | IMC – Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
| Performance (IPv6 Ready Certified) | 1000 Mb latency: < 1.1 µs (LIFO 64-byte packets) 100 Mb Latency: < 1.7 µs (LIFO 64-byte packets) Throughput: up to 9.5 million pps (64-byte packets) Switching capacity: 12.8 Gb/s MAC address table size: 16000 entries |
| Physical specifications | Dimensions (W x D x H): 44.2 x 24.64 x 4.45 cm (17.4 x 9.7 x 1.75 in) (1U height) Weight: 2.59 kg (5.7 lb) |
| Electrical specifications | Maximum heat dissipation: 50 BTU/hr (52.75 kJ/hr) Voltage: 100 – 127 / 200 – 240 V ac Current: 0.3/0.2 A Idle power: 8.4 W Maximum power rating: 14.7 W Frequency: 50/60 Hz |
| Environmental specifications | Operating temperature: 0° to 45°C (32° to 113°F) Operating relative humidity: 15% to 95% @ 40°C (104°F), noncondensing Non-operating/storage temperature: -40° to 70°C (-40° to 158°F) Non-operating/storage relative humidity: 15% to 90% @ 65°C (149°F), noncondensing Altitude: up to 10,000 ft (3 km) |
| Acoustic | Power: 0 dB, Pressure: 0 dB |
| Safety agency certifications | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 NOTE: IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision “B” or later (e.g., J4858B, J4859C) are required. |
