| Type |

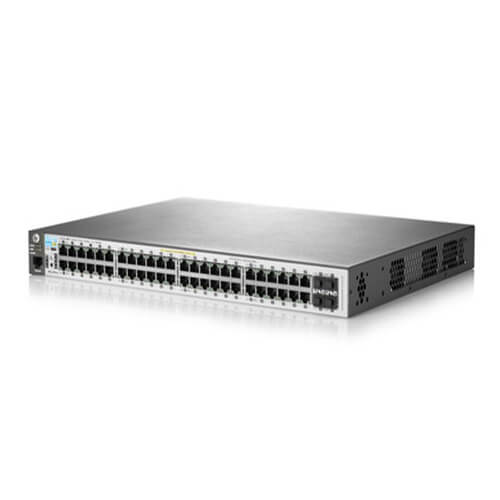

Aruba 2530-48G-PoE+ Switch |
| Ports |
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
- Media Type: Auto-MDIX
- Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 fixed Gigabit Ethernet SFP ports
- 1 Dual-personality (RJ-45 or USB micro-B) serial console port
|
| Memory and processor |
Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 3 MB dynamically allocated |
| Mounting |
- Mounts in EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available)
- Horizontal surface mounting
- Wall mounting
|
| Management |
- IMC – Intelligent Management Center
- Command-Line Interface (CLI)
- Web browser; configuration menu
- Out-of-band management (serial RS-232C or Micro USB)
- IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
|
| Performance (IPv6 Ready Certified) |
- 1000 Mb latency: < 2.3 µs (LIFO 64-byte packets)
- 100 Mb latency: < 7.4 µs (LIFO 64-byte packets)
- Throughput: up to 77.3 million pps (64-byte packets)
- Switching capacity: 104 Gb/s
- MAC address table size: 16000 entries
|
| Physical specifications |
Dimensions (W x D x H): 44.3 x 32.26 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height)
Weight: 4.72 kg (10.4 lb) |
| Electrical specifications |
- Maximum heat dissipation: 236 BTU/hr (248.98 kJ/hr), switch only: 236 BTU/hr; combined switch + max. PoE devices: 1624 BTU/hr
- Voltage: 100–127 / 200–240 V ac
- Current: 5.8/2.9 A
- Idle power: 40.1 W
- Maximum power rating: 476 W
- PoE power: 382 W
- Frequency: 50/60 Hz
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are theoretical max for planning with fully loaded PoE, 100% traffic, all ports plugged in, all modules populated. PoE power is the total power budget available to all PoE ports.
|
| Environmental specifications |
- Operating temperature: 0° to 45°C (32° to 113°F)
- Operating relative humidity: 15% to 95% @ 40°C (104°F), noncondensing
- Non-operating/storage temperature: -40° to 70°C (-40° to 158°F)
- Non-operating/storage relative humidity: 15% to 90% @ 65°C (149°F), noncondensing
- Altitude: Up to 3 km (10,000 ft)
|
| Acoustic |
Power: 33.6 dB, Pressure: 43.9 dB |
| Safety agency certifications |
UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
IEEE 802.3az applies to Gigabit models only.
IEEE 802.3at and IEEE 802.3af apply to PoE+ models only.
SFPs with revision “B” or later are required (e.g., J4858B, J4859C). |
