Thông số kỹ thuật
| General Description | |
|---|---|

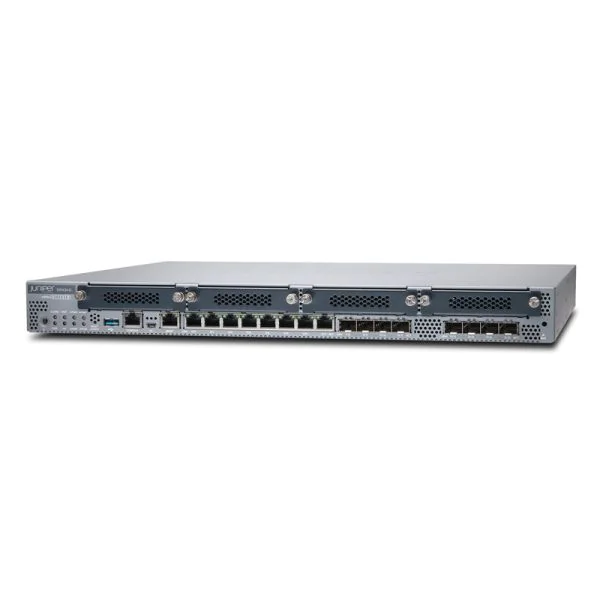

| Description | SSRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). |
| Junos OS software version tested | Junos OS 15.1X49 |
| Form factor | Desktop |
| Performance & Capacity | |
| Firewall performance (max) | 3 Gbps |
| IPS performance | 250 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 500 Mbps |
| Maximum concurrent sessions | 256,000 |
| New sessions/second (sustained, TCP, 3-way) | 10,000 |
| Maximum security policies | 2000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
| Interfaces & Ports | |
| Total onboard ports | 16x1GbE |
| Onboard RJ-45 ports | 8x1GbE |
| Onboard SFP ports | 8x1GbE |
| MACsec-capable ports | 16x1GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Mini PIM (WAN) slots | 4 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Optional PoE+ ports | N/A |
| SSD slots | 1 |
| Memory & Storage | |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| Power & Cooling | |
| Redundant PSU | No |
| Power supply | AC (external) |
| Average power consumption | 122 W |
| Average heat dissipation | 420 BTU/h |
| Maximum current consumption | 1.496 A |
| Airflow/cooling | Front to back |
| Physical Specifications | |
| Size (WxHxD) | 17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) |
| Environment | |
| Operational temperature | 32° to 104° F (0° to 40° C) |
| Nonoperational temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
