Thông số kỹ thuật
| Thông số | Chi tiết |
|---|---|

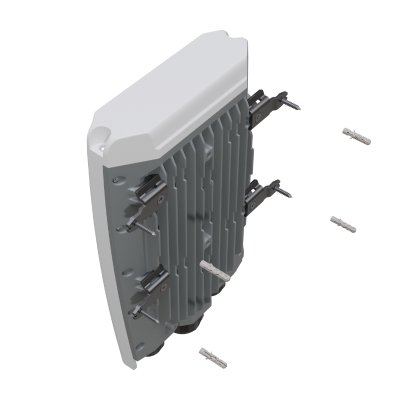

| Product code | CRS504-4XQ-OUT |
| CPU | Single-Core QCA9531 650 MHz |
| CPU architecture | MIPSBE |
| Switch chip model | 98DX4310 |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approx. 200,000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 3 (PoE-IN, 2-pin terminal, DC jack) |
| DC jack input Voltage | 36-57 V |
| 2-pin terminal input Voltage | 36-57 V |
| Max power consumption | 38 W |
| Max power consumption without attachments | 25 W |
| Cooling type | Passive |
| PoE in | 802.3bt |
| PoE in input Voltage | 43-57 V |
| 10/100 Ethernet ports | 1 |
| Number of 100G QSFP28 ports | 4 |
| Serial console port | RJ45 |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification | CE, EAC, ROHS |
| IP | 66 |
