Thông số kỹ thuật

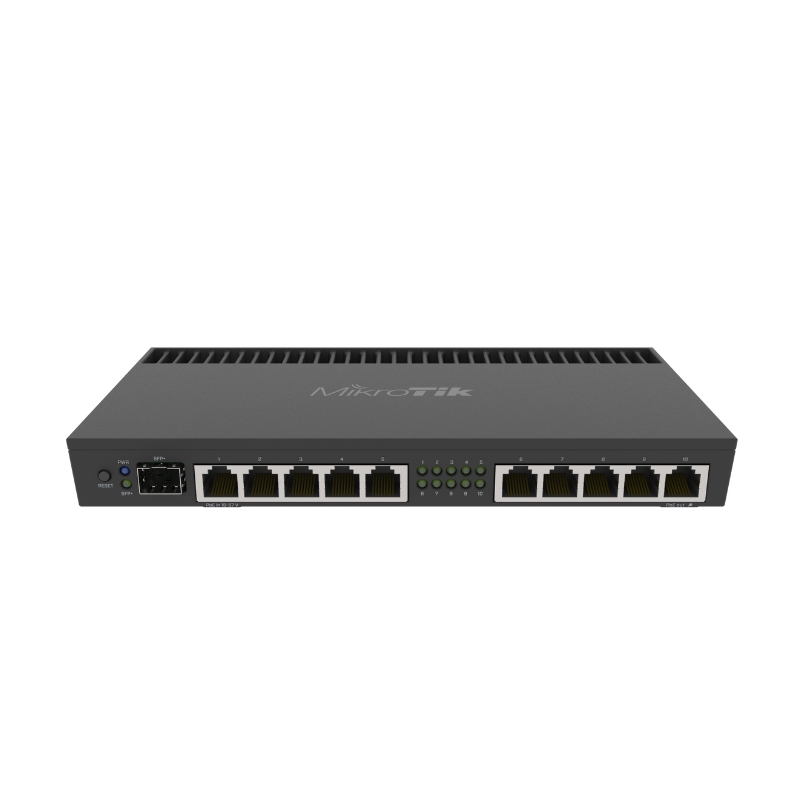

- RB4011iGS+5HacQ2HnD-IN
| Basic Specifications | |
| Product code | RB4011iGS+5HacQ2HnD-IN |
| CPU | 4 core AL21400 1.4 GHz |
| Size of RAM | 1 GB |
| Storage | NAND 512 MB |
| Network Ports | |
| 10/100/1000 Ethernet ports | 10 |
| SFP+ port | 1 |
| Switch chip model | RTL8367SB |
| Wireless 2.4 GHz Radio | |
| Wireless regulations | Specific frequency range may be limited by country regulations |
| Operating frequency | 2412 – 2484 MHz |
| Wireless interface model | R11e-2HnD |
| Supported protocol | 802.11b/g/n |
| Chains | 2 |
| Wireless 5 GHz Radio | |
| Operating frequency | 5150 – 5875 MHz |
| Wireless interface model | QCA-9984 |
| Supported protocol | 802.11a/n/ac |
| Chains | 4 |
| Antenna | |
| Antenna beam width | 360° |
| Antenna gain | 3 dBi (2 antennas dual band, 2 antennas single 5 GHz band) |
| Power & Voltage | |
| Power Jack | 1 |
| PoE in | Yes (port 1), passive, 18 – 57 V |
| PoE out | Yes (port 10), passive, up to 57 V |
| Max power consumption | 23 W without PoE out, 44 W with PoE out |
| Supported input voltage | 12 V – 57 V (jack) |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Environmental & Physical | |
| Operating temperature | -40°C to +45°C |
| Dimensions | 228 x 120 x 30 mm |
| Other | |
| Serial port | RJ45 |
| License level | 5 |
| Operating System | RouterOS |
