Thông số kỹ thuật

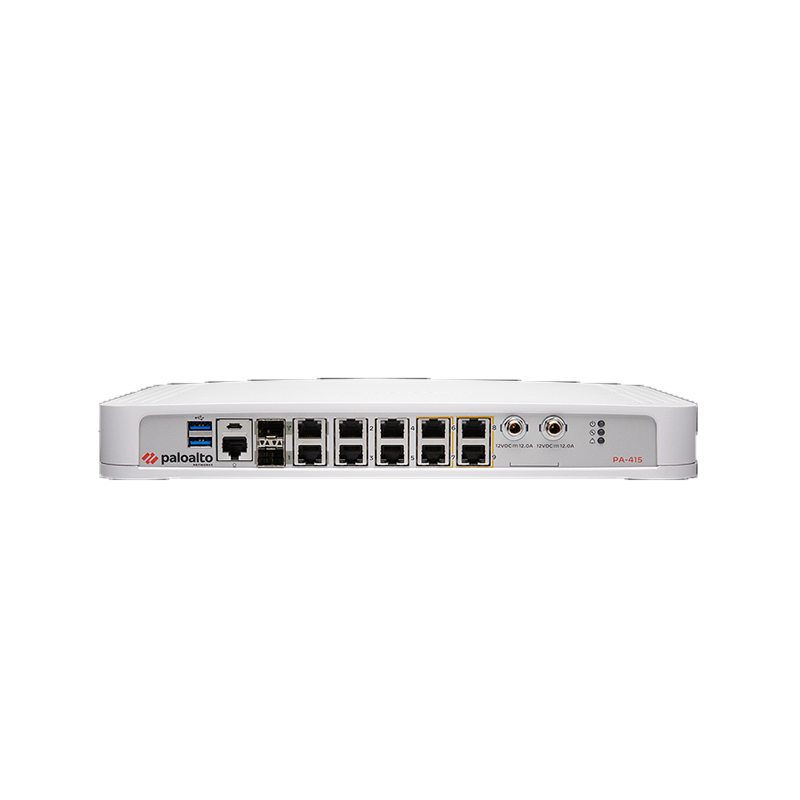

| Datasheet Palo Alto PAN-PA-415 (PA-415) | |
|---|---|
| Hardware Specifications | |
| SFP/RJ45 combo port | 1x 1G SFP/RJ45 combo port |
| RJ45 port | 8x 1G RJ45 ports |
| Management port | 1x 1G SFP/RJ45 combo |
| Console port | 1x RJ45 console 1x Micro USB console port |
| USB port | 2x USB ports |
| Storage Capacity | 128 GB eMMC |
| PoE | Total PoE Budget: 91 W Maximum loading on a single port: 60 W |
| Performance | |
| Firewall throughput (HTTP/appmix) | 1.3/1.2 Gbps |
| Threat Prevention throughput (HTTP/appmix) | 0.6/0.6Gbps |
| IPsec VPN throughput | 0.92 Gbps |
| Max concurrent sessions | 64000 |
| New sessions per second | 11000 |
| Virtual systems (base/max) | 1/1 |
| Power | |
| Power Supply | 29/34 W |
| Max BTU/hr | 117 |
| Max Current Consumption | 2.9 A @ 12 VDC |
| Max Inrush Current | 3.3 A |
| Dimensions Specifications | |
| Dimensions | 1.73″ H × 9″ D × 13″ W |
| Weight | 7.85 lbs / 12.2 lbs |
