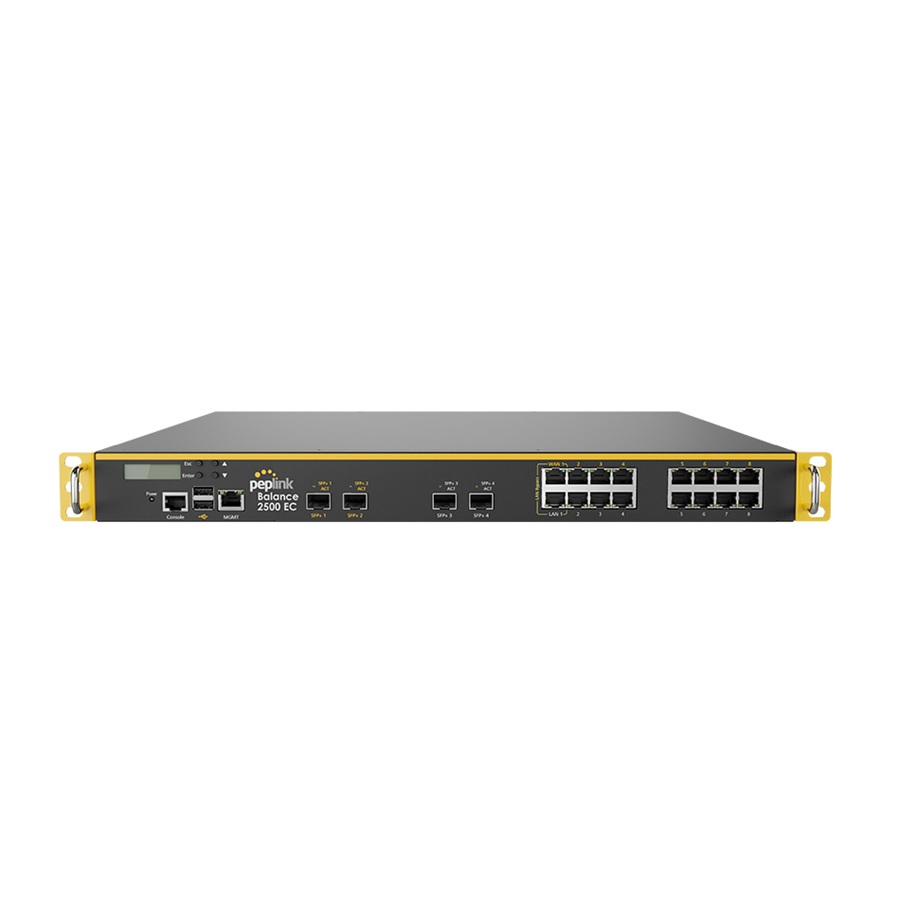

| Peplink Balance 2500 (BPL-2500-2SFP) – Technical Specifications |
| Parameter |
Detail |
| Ethernet WAN Ports |
4x GE WAN ports, 2x 10G SFP+ WAN ports |
| LAN Ports |
2x 10G SFP+ LAN ports |
| Simultaneous Dual-Band 802.11ac/a/b/g/n Wi-Fi AP |
No |
| Embedded 4G LTE |
No |
| SIM Card Size |
No |
| USB WAN Modem Port |
1 |
| Recommended Users |
5000-20000+ |
| Stateful Firewall Throughput |
8Gbps |
| 802.1q VLANs supported |
128 |
| Port-Based VLAN |
Yes |
| Load Balancing & Failover |
Yes |
| Load Balancing Algorithms |
8 |
| Drop-In Mode |
Yes |
| Inbound Load Balancing |
Yes |
| InControl Cloud Management |
Yes |
| PepVPN/SpeedFusion Functionality |
|
| PepVPN |
Yes |
| SpeedFusion Hot Failover |
Yes |
| SpeedFusion WAN Smoothing |
Yes |
| SpeedFusion Bandwidth Bonding |
Yes |
| Number of PepVPN/SpeedFusion Peers |
4000 |
| PepVPN Throughput (256-bit AES) |
2Gbps |
| PepVPN Throughput (No Encryption) |
2Gbps |
| IPsec VPN (Network-to-Network) |
Yes |
| Number of IPsec Tunnels |
800 |
| L2TP VPN Server |
Yes |
| PPTP VPN Server |
Yes |
| Recommended PPTP/L2TP VPN Users |
1000 |
| Pepwave AP Series Management |
Yes |
| Maximum Number of AP Supported |
1500 |
| Remote AP & Multiple Config Profiles Management |
Yes |
| Bandwidth Usage Monitor |
Yes |
| QoS for VoIP and E-Commerce |
Yes |
| User Groups Bandwidth Control |
Yes |
| Web Blocking |
Yes |
| Web Filtering Blacklist |
Full |
| Operating Temperature |
-40° – 149°F / -40° – 65°C |
| LACP (802.3ad) NIC Bonding |
Yes |
| Power Consumption |
230W |
| 1U Rackmount |
Yes |
| High Availability |
Yes |
| LAN Bypass |
Yes |
| Dual Hot Swap Power Supply |
Yes |
| Certifications |
FCC, CE, RoHS |
