Thông số kỹ thuật

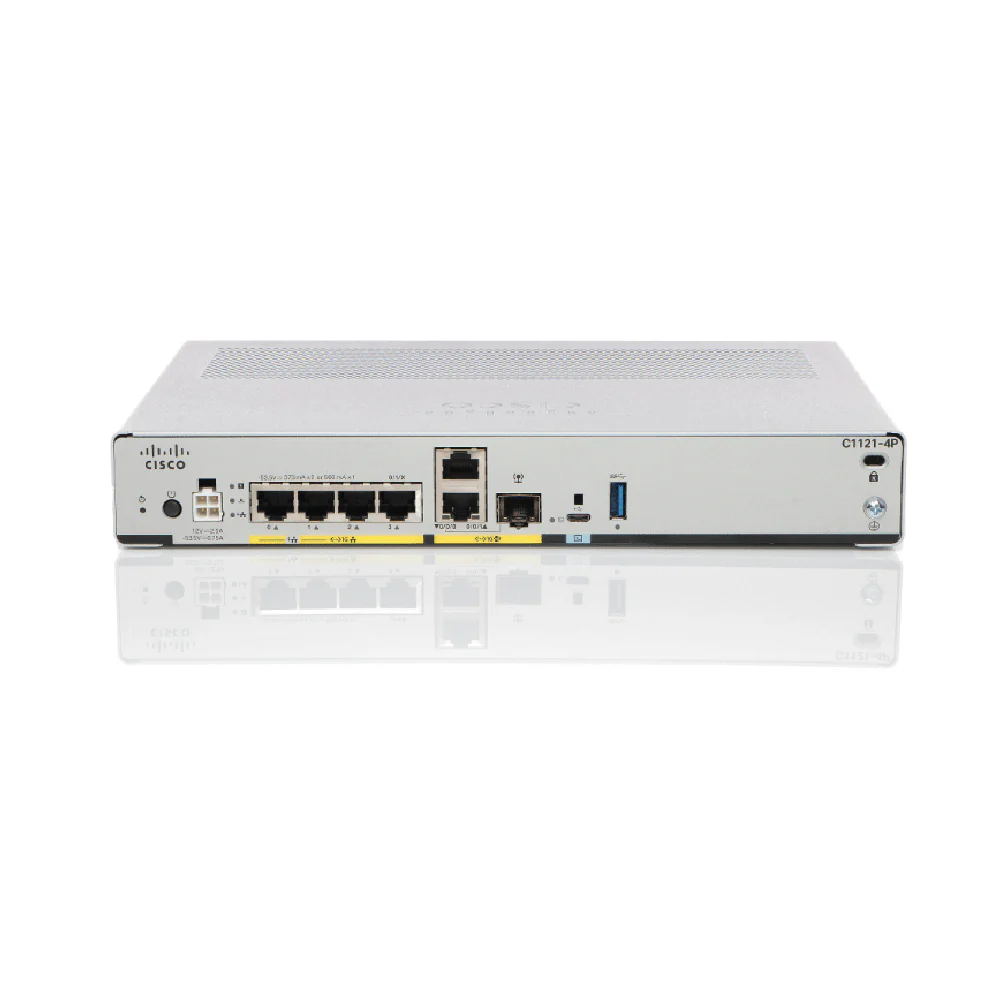

Cisco C1121-4P (ISR 1000 Series)
| Thông số kỹ thuật | Chi tiết |
|---|---|
| Thông tin chung | |
| Model | Cisco C1121-4P |
| Mô tả sản phẩm | Cisco Integrated Services Router 1121 – router – desktop |
| Manufacturer Item No. | C1121-4P |
| EAN/UPC | 0889728187251 |
| Nhóm sản phẩm | Network Equipment |
| Loại thiết bị | |
| Device Type | Router – 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Công nghệ kết nối | Wired |
| Cổng kết nối & Interfaces | |
| WAN Ports Qty | 2 |
| WAN | 1 x 1000Base-T/1000Base-X (RJ-45/SFP) |
| LAN | 4 x 1000Base-T (RJ-45) |
| LAN PoE | 2 x 1000Base-T (PoE) (RJ-45) |
| LAN PoE+ | 2 x 1000Base-T (PoE+) (RJ-45) |
| USB | 1 x USB 3.0 console |
| Giao thức Mạng | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol | |
| Routing Protocols | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Quản lý & Remote Management | |
| Remote Management Protocol | SNMP, RMON, CLI, TR-069 |
| Authentication Method | RADIUS |
| Thuật toán Mã hóa | |
| Encryption Algorithm | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Tính năng QoS & Advanced | |
| Features | Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM) |
| Bộ nhớ | |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Nguồn cấp | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Điều kiện môi trường | |
| Nhiệt độ hoạt động (Min) | 0 °C |
| Nhiệt độ hoạt động (Max) | 40 °C |
| Độ ẩm hoạt động | 5 – 95% (non-condensing) |
| Chứng nhận & Tiêu chuẩn tuân thủ | |
| Compliant Standards | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
