Thông số kỹ thuật

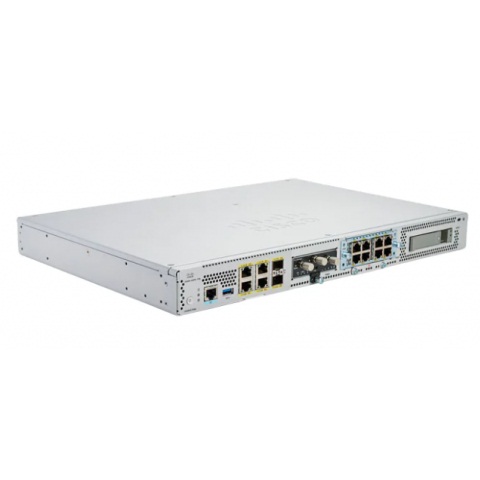

Cisco Catalyst 8200L-1N-4T
| Thông số | Chi tiết |
|---|---|
| Mô tả sản phẩm | |
| Model | C8200L-1N-4T |
| Mô tả | 1RU w/ 1 NIM slot và 4x 1 Gigabit Ethernet WAN ports |
| Xử lý & Bộ nhớ | |
| CPU | Intel x86 Multicore processors |
| DRAM | 4 GB (default), hỗ trợ up to 32 GB |
| Storage (M.2 SSD) | 16 GB (default), hỗ trợ up to 600 GB |
| Flash memory | 8 GB |
| Cổng kết nối | |
| Built-in Gigabit Ethernet WAN | 4x 1GE RJ45 |
| SFP Ethernet ports | 2x SFP + 2x RJ45 |
| NIM slots | 1 NIM slot |
| PIM slots | 1 PIM slot |
| Hiệu năng | |
| IPv4 forwarding (1400 bytes) | Up to 3.8 Gbps |
| IPsec throughput (1400 bytes) | Up to 500 Mbps |
| IPsec hardware acceleration | Có (up to 500 Mbps IPsec traffic) |
| Khả năng mở rộng | |
| SD-WAN overlay tunnels | 1500 |
| IPsec SVTI tunnels | 1500 |
| VRF instances | 2000 |
| Access Control Lists (ACLs) | 4000 |
| IPv4/IPv6 routes | 800.000 (4GB), up to 4M (32GB) |
| NAT sessions | 600.000 (8GB), up to 2M (32GB) |
| Firewall sessions | 512.000 |
| ACE per system | 72.000 |
| Queues | 16.000 |
| Thiết kế & Điều kiện | |
| Form factor | 1-Rack Unit (1RU) |
| Power supply | AC power supply |
III. Các loại Module & Card tương thích
| Product number | Mô tả |
|---|---|
| Giao diện Ethernet Layer 3 | |
| C-NIM-1M | 1-port 2.5/1Gbps RJ-45 WAN, 90W PoE 802.3 af/at/bt NIM |
| C-NIM-2T | 2-port 100Mbps/1Gbps dual-mode RJ45/SFP NIM with WAN MACSec |
| LAN modules | |
| NIM-ES2-4 | 4-port Gigabit Ethernet switch NIM |
| NIM-ES2-8 | 8-port Gigabit Ethernet switch NIM |
| NIM-ES2-8-P | 8-port Gigabit Ethernet switch NIM with PoE 802.3 af/at |
| Voice modules (FXO/FXS) | |
| NIM-2FXO / NIM-4FXO | 2/4-port FXO NIM |
| NIM-2FXSP / NIM-4FXSP | 2/4-port FXS NIM |
| NIM-2FXSP/4FXOP | 2-port FXS + 4-port FXO NIM |
| Voice modules (E/M & BRI) | |
| NIM-4E/M | 4-port E/M NIM |
| NIM-2BRI-NT/TE / NIM-4BRI-NT/TE | 2/4-port BRI (NT/TE) NIM |
| Voice DSP modules | |
| NIM-PVDM-32/64/128/256 | 32/64/128/256-channel voice DSP NIM |
| Multiflex Trunk (T1/E1) | |
| NIM-1/2/4/8MFT-T1/E1 | 1/2/4/8-port multiflex trunk T1/E1 |
| DSL/Broadband modules | |
| NIM-VAB-A/B/M | Multi-mode VDSL2/ADSL/2/2+ NIM (Annex A/B/M) |
| NIM-4SHDSL-EA | Multi-mode G.SHDSL NIM |
| Serial WAN | |
| NIM-1T / NIM-2T / NIM-4T | 1/2/4-port serial high-speed WAN card |
| Async WAN | |
| NIM-16A / NIM-24A | 16/24-port Asynchronous Module |
| Wireless WAN (LTE/5G) | |
| P-5GS6-GL | 5G Sub-6 GHz Pluggable – Global |
| P-LTEAP18-GL | 4G/CAT18 LTE Advanced Pro Pluggable – Global |
IV. Bộ nhớ, Lưu trữ & Phụ kiện
| Product number | Mô tả |
|---|---|
| DRAM Memory | |
| MEM-C8200-8GB | 8 GB DRAM Memory |
| MEM-C8200-16GB | 16 GB DRAM Memory |
| MEM-C8200-32GB | 32 GB DRAM Memory |
| M.2 SSD Storage | |
| M2USB-16G | 16 GB M.2 USB SSD Storage |
| M2USB-32G | 32 GB M.2 USB SSD Storage |
| SSD-M2NVME-600G | 600 GB M.2 NVMe SSD Storage |
| Rack Mount & Accessories | |
| C8200-RM-19 | Rack Mount kit – 19″ |
| C8200-RM-23 | Rack Mount kit – 23″ |
| C8200-WM-1R | Wall Mount Kit |
| C8200-RFID-1R | RFID |
| NIM/PIM Blanks | |
| C8200-NIM-BLANK | NIM Blank |
| C8200-PIM-BLANK | PIM Blank |
