Thông số kỹ thuật

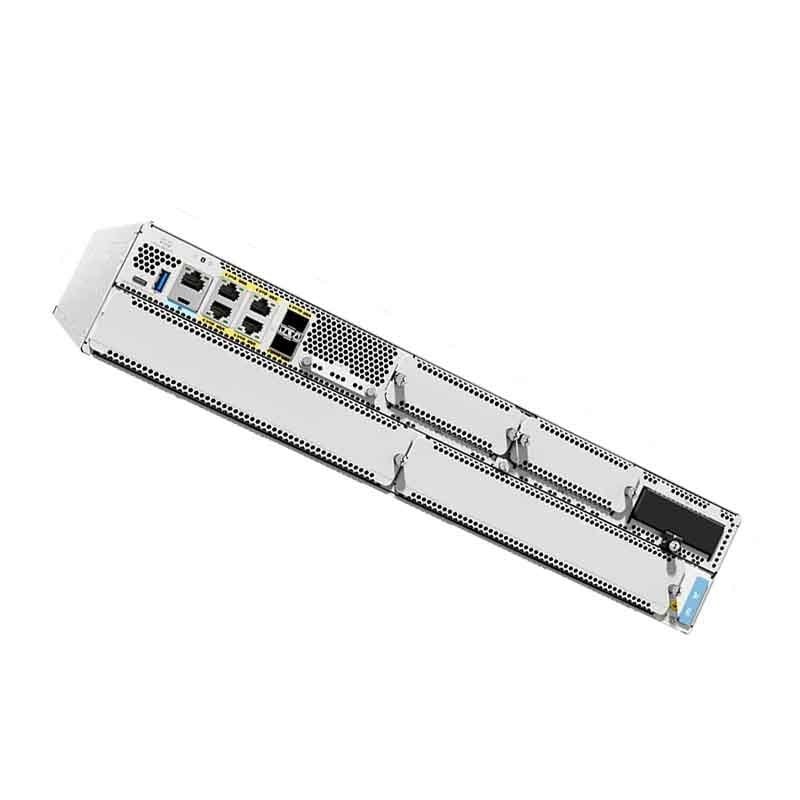

Cisco Catalyst 8300-2N2S-6T
| Thông số | Chi tiết |
|---|---|
| Mô tả sản phẩm | |
| Model | C8300-2N2S-6T |
| Mô tả | 2RU w/ 1G WAN (2 SM slot, 2 NIM slot, 6x 1GE ports) |
| Xử lý & Bộ nhớ | |
| CPU | Intel x86 Multicore processors |
| DRAM | 8 GB (default), hỗ trợ up to 32 GB |
| Storage (M.2 SSD) | 16 GB (default), hỗ trợ up to 600 GB |
| Flash memory | 8 GB |
| Cổng kết nối | |
| Built-in Gigabit Ethernet | 6x 10/100/1000 Mbps (WAN/LAN) |
| SFP Ethernet ports | 2x SFP + 4x RJ45 |
| SM slots | 2 SM slot |
| NIM slots | 2 NIM slot |
| PIM slots | 1 PIM slot |
| Hiệu năng SD-WAN | |
| IPsec Throughput (1400 Bytes) | Up to 1.9 Gbps |
| IPsec Throughput (IMIX) | 1.75 Gbps |
| SD-WAN Overlay Tunnels | 6000 |
| Hiệu năng chung | |
| IPv4 Forwarding (1400 Bytes) | Up to 19.7 Gbps |
| IPsec Throughput (1400 Bytes) | Up to 1.9 Gbps |
| IPsec hardware acceleration | Có (up to 5 Gbps IMIX traffic) |
| Khả năng mở rộng | |
| IPsec SVTI Tunnels | 4000 |
| VRF instances | 4000 |
| Access Control Lists (ACLs) | 4000 |
| IPv4 routes | 1.6M (8GB), up to 4M (32GB) |
| IPv6 routes | 1.5M (8GB), up to 4M (32GB) |
| NAT sessions | 1.2M (8GB), up to 2M (32GB) |
| Firewall sessions | 512K |
| ACE per system | 72K |
| Queues | 16K |
| Thiết kế & Điều kiện | |
| Form factor | 2RU (hỗ trợ 1RU) |
| Power supply | AC power supply |
Module Hỗ Trợ Cho Cisco Router Catalyst C8300-2N2S-6T
| Product number | Mô tả |
|---|---|
| Ethernet Layer 3 modules | |
| C-NIM-1X | 1-port 10Gbps SFP/SFP+ NIM with WAN MACSec |
| C-NIM-1M | 1-port 2.5/1Gbps RJ-45 WAN, 90W PoE 802.3 af/at/bt NIM |
| C-NIM-2T | 2-port 100Mbps/1Gbps dual-mode RJ45/SFP NIM with WAN MACSec |
| LAN modules | |
| NIM-ES2-4 | 4-port Gigabit Ethernet switch NIM |
| NIM-ES2-8 | 8-port Gigabit Ethernet switch NIM |
| NIM-ES2-8-P | 8-port Gigabit Ethernet switch NIM with PoE support |
| C-SM-16P4M2X | 22-port Catalyst L2 switch module with UADP ASIC |
| C-SM-40P8M2X | 50-port Catalyst L2 switch module with UADP ASIC |
| Compute modules | |
| UCS-E160S-M3/K9 | Single-wide, Intel Broadwell 6-core, up to 64 GB RAM |
| UCS-E180D-M3/K9 | Double-wide, Intel Broadwell 8-core, up to 128 GB RAM |
| UCS-E1120D-M3/K9 | Double-wide, Intel Broadwell 12-core, up to 128 GB RAM |
| Voice modules (FXO/FXS) | |
| NIM-2FXO / NIM-4FXO | 2/4-port FXO NIM |
| NIM-2FXSP / NIM-4FXSP | 2/4-port FXS NIM |
| NIM-2FXSP/4FXOP | 2-port FXS + 4-port FXO NIM |
| NIM-4E/M | 4-port E/M NIM |
| Voice modules (Service Module) | |
| SM-X-8FXS/12FXO | 8-port FXS + 12-port FXO single-wide service module |
| SM-X-16FXS/2FXO | 16-port FXS + 2-port FXO single-wide service module |
| SM-X-24FXS/4FXO | 24-port FXS + 4-port FXO single-wide service module |
| SM-X-72FXS | 72-port FXS double-wide service module |
| Voice DSP modules | |
| NIM-PVDM-32/64/128/256 | 32/64/128/256-channel Voice DSP NIM Module |
| SM-X-PVDM-3000 | 3080-channel high-density voice DSP module |
| SM-X-PVDM-2000 | 2048-channel high-density voice DSP module |
| SM-X-PVDM-1000 | 1024-channel high-density voice DSP module |
| SM-X-PVDM-500 | 768-channel high-density voice DSP module |
| Multiflex Trunk (T1/E1) | |
| NIM-1/2/4/8MFT-T1/E1 | 1/2/4/8-port multiflex trunk T1/E1 |
| Channelized T1/E1 & ISDN PRI | |
| NIM-1/2/8CE1T1-PRI | 1/2/8-port Multiflex trunk voice/channelized data T1/E1 |
| DSL/Broadband modules | |
| NIM-VAB-A/B/M | Multi-mode VDSL2/ADSL/2/2+ NIM (Annex A/B/M) |
| NIM-4SHDSL-EA | Multi-mode G.SHDSL NIM |
| ISDN BRI/Serial WAN | |
| NIM-2/4BRI-S/T | 2/4-port ISDN BRI WAN interface card for data |
| NIM-2BRI-NT/TE / NIM-4BRI-NT/TE | 2/4-port BRI (NT/TE) NIM |
| SM-X-1T3/E3 | 1-port clear-channel T3/E3 service module |
| NIM-1T / NIM-2T / NIM-4T | 1/2/4-port serial high-speed WAN card |
| Async WAN interface | |
| NIM-16A / NIM-24A | 16/24-port Asynchronous Module |
| Wireless WAN (LTE/5G) | |
| P-5GS6-GL | 5G Sub-6 GHz Pluggable – Global |
| P-LTEAP18-GL | 4G/CAT18 LTE Advanced Pro Pluggable – Global |
Các Tùy Chọn Bộ Nhớ, Lưu Trữ Và Phụ Kiện
| Product number | Mô tả |
|---|---|
| DRAM Memory | |
| MEM-C8300-8GB | 8 GB Memory |
| MEM-C8300-16GB | 16 GB Memory |
| MEM-C8300-32GB | 32 GB Memory |
| M.2 SSD Storage | |
| M2USB-16G | 16 GB M.2 USB SSD Storage |
| M2USB-32G | 32 GB M.2 USB SSD Storage |
| SSD-M2NVME-600G | 600 GB M.2 NVMe SSD Storage |
| Rack Mount (1RU) | |
| C8300-RM-19-1R | 1RU Rack Mount kit – 19″ |
| C8300-RM-23-1R | 1RU Rack Mount kit – 23″ |
| Rack Mount (2RU) | |
| C8300-RM-19-2R | 2RU Rack Mount kit – 19″ |
| C8300-RM-23-2R | 2RU Rack Mount kit – 23″ |
| Accessories | |
| C8300-WM-1R | 1RU Wall Mount Kit |
| C8300-FAN-1R | 1RU Fan Tray Assembly |
| C8300-FAN-2R | 2RU Fan Tray Assembly |
| C-RFID-1R | 1RU RFID |
| C-RFID-2R | 2RU RFID |
| Blank Modules | |
| C8300-SM-BLANK | SM Blank |
| C8300-NIM-BLANK | NIM Blank |
| C8300-PIM-BLANK | PIM Blank |
